More Intelligence in the Smallest Space.
The FP1 Series.





Even in applications with up to 14 inputs / outputs, the FP1 series offers a variety of options for automating processes rapidly and reliably. With its compact design, it takes up the smallest space. ”Mobile“ use (in transportation systems etc) is also possible, thanks to the 24VDC power supply. The FP1 is therefore not just an intelligent alternative to simple relay or contactor circuits, but a complete control system that, owing to its efficiency and simplicity of use, contributes to a logical reduction in cost.

Some common-features data:

bulletHigh processing rate of 1.6µs per logic instruction
bullet32 bit word processing
bulletUp to 16 freely programmable sub-programmes
bulletRS 422 interface / RS232C interface (C24 upwards)
bulletSuper visory remote control and diagnosis
bulletPlug-in screw terminal strips (C24 upwards)
bulletPulse catch inputs from 500µs upwards
bulletPulse output
bulletDIN busbar assembly
bulletUniversal power supply AC or DC
bulletIEC61131: 4 Languages
bulletNetworking capability with larger PLC systems – FP3/FP10SH
bulletDifferent analogue modules available to solve your control task





Specifications.

Performance specifications
PLC type FP1-C14 FP1-C16 FP1-C24 FP1-C40 FP1-C56 FP1-C72
Control method Cyclic operation
Inputs/outputs total: 14
8 / 6
total: 16
8 / 8
total: 24
16 / 8
total: 40
24 / 16
total: 56
32 / 24
total: 72
40 / 32
Max. inputs/outputs: 54 56 104 120 136 152
Programme memory EEPROM (no battery) built in ROM
(EPROM and EEPROM optional)
Programme capacity 900 steps 2,720 steps 5,000 steps
Instructions Basic/High-level 41 / 85 80 / 111 81 / 111
Processing speed 1.6µs / step (basic instruction)
Memory Internal relay (R) 256 points 1,008 points
Timer/Counter (T/C) 128 points 144 points
Data register (DT) 256 words 1,660 words 6,144 words
Master Control Relays (MCR) 16 points 32 points
Labels (JMP + LOOP) 32 64
Number of step ladder 64 128
Number of subroutines 8 16
Special functions High speed counter 1 phase / 1 point (10kHz) or 2 phases / 1 point (5kHz)
Pulse output 1 point (output frequency up to 4.9kHz) 2 points (up to 4.9kHz)
Pulse catch input/ 4 inputs (500µs) 8 inputs (catches pulses of 500µs)
Interrupt input - 8 inputs (for pulses of 200µs)
Interrupt programme - 9 programmes (external 8 inputs +
periodical interrupt)
Periodical interrupt - 10ms to 30s
Constant scan available
Other functions password setting



General specifications
Rated operating voltage DC types: 24VDC AC types:
100V to 240VAC
Operating voltage range DC types:
20.4V to 26.4VDC
AC types:
85V to 264VAC
Ambient temperature 0º C to +55º C
Storage temperature -20ºC to +70ºC



Input specifications
Input type +/- switching
Rated input voltage 12V to 24VDC
ON voltage range > 10VDC
OFF voltage range < 2.5VDC



Output specifications  -  Relay
Output type Normally open (1 form A)
Rated control capacity 2A 250VAC, 2A 30VDC



Output specifications  -  Transistor
Insulation method Optical coupler
Output type Open collector (PNP or NPN transistor)
Rated load voltage 24VDC (5 to 24VDC)
Max. load current 0.5 A





Expandable Intelligence.
FP1 Expansion/Special Modules.








EXPANSION MODULE E8
EXPANSION MODUL E16
4 inputs/4 outputs
8 inputs/8 outputs
8 inputs or 8 outputs
16 inputs or 16 outputs
80 x 81 x 45mm (DC)
120 x 81 x 45mm (DC)






EXPANSION MODULE E24
EXPANSION MODULE E40
16 inputs/8 outputs
24 inputs/16 outputs
190 x 96 x 45/74mm (DC/AC)
260 x 96 x 45/74mm (DC/AC)

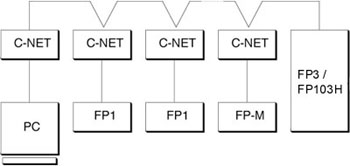

C-NET ADAPTER
Linking of up to 32 stations
Multidrop network via RS485
Low-cost wiring
Standard type: RS422, RS232C
 S1-type: RS422 (Slave)

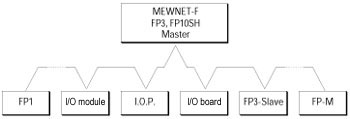

MEWNET-F  I/O coupling module

bulletDecentralised connection to a  master station.
bulletThe FP1 serves as a  slave via RS485.













     Analogue Modules, MEWNET-TR Sensor/Actuator Bus
     and Profibus.

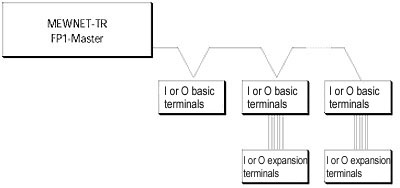

MEWNET-TR Sensor/Actuator Bus
(master-modul and slave terminals)

bullet
Connection of up to 80 digital, decentralised I/Os (up to 20 stations) via RS485




ANALOGUE MODULES

ANALOGUE INPUT MODULE
One module per CPU. 4I, 10bits.
0 –  5VDC
0 – 10VDC
0 – 20mA


ANALOGUE OUTPUT MODULE
Maximum of two modules per CPU.
0 – 5VDC
0 – 10VDC
0 – 20mA



NAIS PROFIBUS

PROFIBUS implies manufacturer – independent communication at field level. The European PROFIBUS standard EN50170 guarantees compatibility of all certified devices.

The FP1 DP-Slave Unit (AFP 17910) allows Matsushita’s FP1 miniature control to be connected to the PROFIBUS as a slave unit. The FP1 has its own powerful set of commands, operates independently and can continue to exercise control even if communication is interrupted. The configurable address area is 0..125. The baudrates 9.6kbaud up to 1,500kbaud can be detected automatically.
